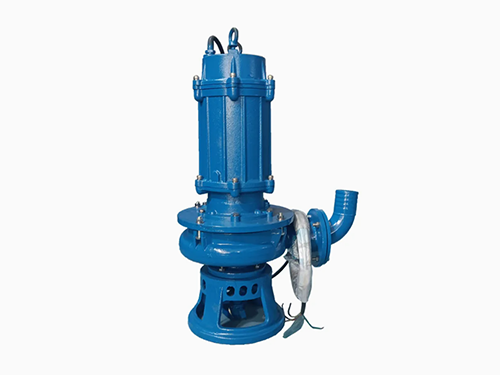

ZJQ type submersible slurry pump
The ZJQ type submersible slurry pump and sand suction pump is a hydraulic machine where the motor and pump are coaxially submerged in the medium for operation.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Introduction
The ZJQ type submersible slurry pump and sand suction pump is a hydraulic machine where the motor and pump are coaxially submerged in the medium for operation. The flow-passing components of this pump are made of high-strength wear-resistant alloy, wear-resistant cast iron, cast steel, etc. The material of the flow-passing components is determined according to the liquid discharged during the customer's operation. This pump has a large flow-passing channel, making it suitable for conveying media such as sediment, ore slurry, coal slurry, sand, and gravel that contain relatively large solid particles. It can also be used for suction and sprinkling in applications such as river dredging, feces, and slurry feed. Moreover, it can be applied in fields like municipal engineering, chemical dyeing and printing, medicine, shipbuilding, and the food industry. It is an important piece of equipment that cannot be replaced by submersible sewage pumps.
Model Meaning
80 ZJ Q 36 - 45 4 A B
80 - Diameter (mm)
ZJ-Slurry Pump Type
Q-Submersible Pump
36-Wetted Parts Model
45-Power (kW)
4-Motor (Pole)
A-Forced Cooling
B-Protected Type
Structure Drawing
1. Signal Cable 2. Motor Lead Wires 3. Terminal Box 4. Motor Top Cover 5. Bearing 6. Upper Bearing Housing 7. Motor Housing 8. Stator
9. Rotor Shaft10. Bearing 11. Oil-Water Probe 12. Oil Chamber 13. Mechanical Seal 14. Liner Plate 15. Discharge Pipe 16. Support Frame
17. Pump Casing18. Impeller19. Base Strainer 20. Mixing Impeller
