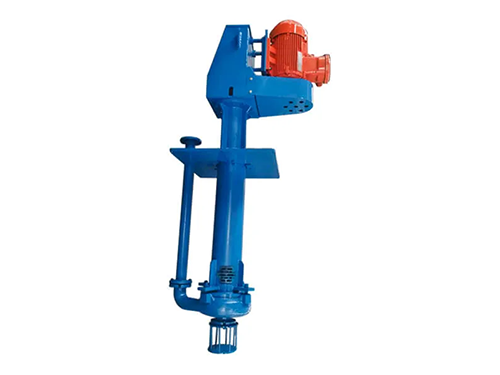

ZJL Vertical Slurry Pump

Name: ZJL Vertical Slurry Pump
SKU: SKU-100

The ZJ series is a self-developed single-stage, single-suction centrifugal slurry pump, available in horizontal (ZJ) and vertical (ZJL) configurations.

ZJ ZJL Slurry Pump

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Introduction

The ZJ series is a self-developed single-stage, single-suction centrifugal slurry pump, available in horizontal (ZJ) and vertical (ZJL) configurations.
Made of high-chromium wear-resistant alloy cast iron, the pumps offer excellent resistance to abrasion, corrosion, and impact. They feature high efficiency, low energy consumption, long service life, light weight, robust construction, reliable operation, low vibration, low noise, and easy maintenance.
This series is suitable for conveying abrasive or corrosive slurries containing solid particles, with a maximum solids concentration by weight of 45% for mortar and 60% for ore slurry, and a medium temperature ≤60°C. This kind of pump can operate in multi-stage series and are widely used in power generation, metallurgy, coal, and building materials industries.

Model Meaning

200 ZJ-I-A-70
200-Discharge diameter(mm)
ZJ- Slurry pump
I-Single-stage pump/Two-stage pump
A- Number of Impeller vanes
70-（mm）Impeller diameter(mm)

65-ZJ-L-30
60- Discharge diameter(mm)
ZJ- Slurry pump
L-Vertical type
30-Impeller diameter(mm)

Structure Drawing

1. Coupling 2. Shaft 3. Bearing Housing 4. Disassembly Ring 5. Expeller 6. Frame Plate Liner Insert 7. Volute Liner 8. Impeller

9. Throat Bushing 10. Cover Plate 11. Frame Plate 12. Stuffing Box 13. Lantern Ring 14. Base 15. Support Bracket 16. Adjusting Screw

FAQ

Can you provide product repair and maintenance services?

Of course. We not only provide after-sales service, but also provide you with professional maintenance advice and training. Our technicians can carry out regular inspection and maintenance for your equipment, find and solve potential problems in time, extend the service life of equipment, and reduce your operating costs.

Product problems, how to get after-sales support?

If you encounter problems in the process of using our products, you can contact our after-sales team at any time. You can feedback your questions through the after-sales consultation channel on the website, and we will respond within [specific time]. For common problems, we will guide you to solve them by phone or email; if you need on-site service, we will arrange professional and technical personnel to go to your location as soon as possible.

What is the mode of transport of goods?

We cooperate with a number of professional international freight forwarding companies, and can choose the appropriate mode of transportation according to your requirements, including sea, air, land, etc. At the time of order confirmation, we will recommend you the most cost-effective transportation plan according to the weight, volume, delivery time and other factors, and be responsible for the safe delivery of the goods to the place you specify.

What are the payment methods?

We accept a variety of international payment methods, such as T/T (wire transfer), L/C (letter of credit) and so on. The specific payment method can be determined through negotiation with us according to your needs and orders.

How long is the cycle of customized products?

The customization cycle will vary depending on the complexity of the product and the volume of the order. In general, it takes about 1 week from requirement confirmation to sample delivery, and mass production is completed within 3 weeks after sample confirmation. We will give a more accurate estimated time when communicating with you, and feedback the progress to you in the production process.

Do you support product customization? What aspects can be customized?

Yes, we have strong customization capabilities. The pump body material (such as wear-resistant alloy, anti-corrosion rubber, special steel, etc.), caliber size, export direction, overall size, length under liquid, etc. can be customized according to your needs. At the same time, you can also choose electric motors or diesel engines and other power equipment.
