IS Water Pump

Name: IS Water Pump
SKU: SKU-770

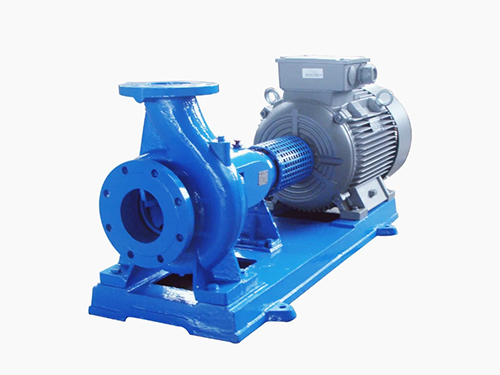

The IS series is a single-stage, single-suction centrifugal pump designed for industrial and municipal water supply and drainage, as well as agricultural irrigation and drainage.

IS Pipeline Pump

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Introduction

The IS series is a single-stage, single-suction centrifugal pump designed for industrial and municipal water supply and drainage, as well as agricultural irrigation and drainage. It is intended for clean water or liquids with similar physical and chemical properties, at temperatures up to 80°C.

ISR Series Pumps
The ISR series is designed for hot water boiler feed and hot water circulation systems. It is also suitable for industrial and municipal water supply, drainage, and irrigation, handling temperatures up to 150°C.
IS(R) Performance Range (at design point):
Speed: 2900 r/min and 1450 r/min
Suction diameter: 50-200 mm
Flow: 6.3-400 m³/h
Head: 5-125 m

Model Meaning

IS（R）80 - 65 160 A ······J（也作D）

80-Suction diameter (mm)
65-Discharge diameter (mm)
160-Nominal impeller diameter (mm)
A- Impeller trim grade
J（也作D）- also denoted as D – Reduced-speed pump

Structure Drawing

1,Casing

2,Casing cover

3,Impeller

4,Shaft

5,Sealing ring

6,Impeller nut

7,Lock washer

8, Shaft sleeve

9,Packing gland

10,Packing ring

11,Packing

12,Bearing frame assembly

1,Casing

2,Impeller nut

3,Lock washer

4,Sealing ring

5,Impeller

6,Cooling water pipe connector

7,Casing cover

8, Shaft sleeve

9,Packing ring

10,Packing

11,Packing gland

12,Bearing frame assembly

13,Shaft

14,Water cooling chamber cover
