HW Mixed Flow Pump

Name: HW Mixed Flow Pump
SKU: SKU-800

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Introduction

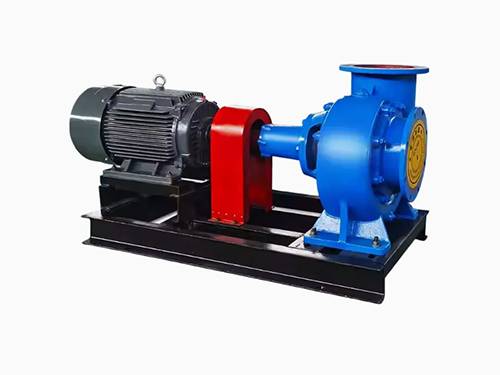

The HW series pump is a horizontal, single-stage, single-suction, volute casing mixed flow pump. It is suitable for conveying clean water or other liquids whose physical and chemical properties are similar to water. The temperature of the conveyed liquid should not exceed 50°C. It is widely used in various applications such as farmland irrigation, industrial and municipal water supply and drainage. The performance range of the HTHW series pump is as follows: flow rate 90–9,000 m³/h, head 3.5–22 m.

Model Meaning

100 HW - 8 S
S-Type code
8-Rated head (m)
HW-Horizontal volute casing mixed-flow pump
100-Suction and discharge diameters (mm)

Structure Drawing

1. Belt pulley 2. Retaining sleeve 3. Bearings 4. End cover of bearing body 5. Casing 6. Screw plug 7. Impeller 8. Impeller nut 9. Pump cover

10. Bearing body 11. Shaft 12. Packing gland 13. Packing 14. Packing ring 15. Shaft sleeve 16. Paper gasket 17. Impeller nut

FAQ

Can you provide product repair and maintenance services?

Of course. We not only provide after-sales service, but also provide you with professional maintenance advice and training. Our technicians can carry out regular inspection and maintenance for your equipment, find and solve potential problems in time, extend the service life of equipment, and reduce your operating costs.

Product problems, how to get after-sales support?

If you encounter problems in the process of using our products, you can contact our after-sales team at any time. You can feedback your questions through the after-sales consultation channel on the website, and we will respond within [specific time]. For common problems, we will guide you to solve them by phone or email; if you need on-site service, we will arrange professional and technical personnel to go to your location as soon as possible.

What is the mode of transport of goods?

We cooperate with a number of professional international freight forwarding companies, and can choose the appropriate mode of transportation according to your requirements, including sea, air, land, etc. At the time of order confirmation, we will recommend you the most cost-effective transportation plan according to the weight, volume, delivery time and other factors, and be responsible for the safe delivery of the goods to the place you specify.

What are the payment methods?

We accept a variety of international payment methods, such as T/T (wire transfer), L/C (letter of credit) and so on. The specific payment method can be determined through negotiation with us according to your needs and orders.

How long is the cycle of customized products?

The customization cycle will vary depending on the complexity of the product and the volume of the order. In general, it takes about 1 week from requirement confirmation to sample delivery, and mass production is completed within 3 weeks after sample confirmation. We will give a more accurate estimated time when communicating with you, and feedback the progress to you in the production process.

Do you support product customization? What aspects can be customized?

Yes, we have strong customization capabilities. The pump body material (such as wear-resistant alloy, anti-corrosion rubber, special steel, etc.), caliber size, export direction, overall size, length under liquid, etc. can be customized according to your needs. At the same time, you can also choose electric motors or diesel engines and other power equipment.
